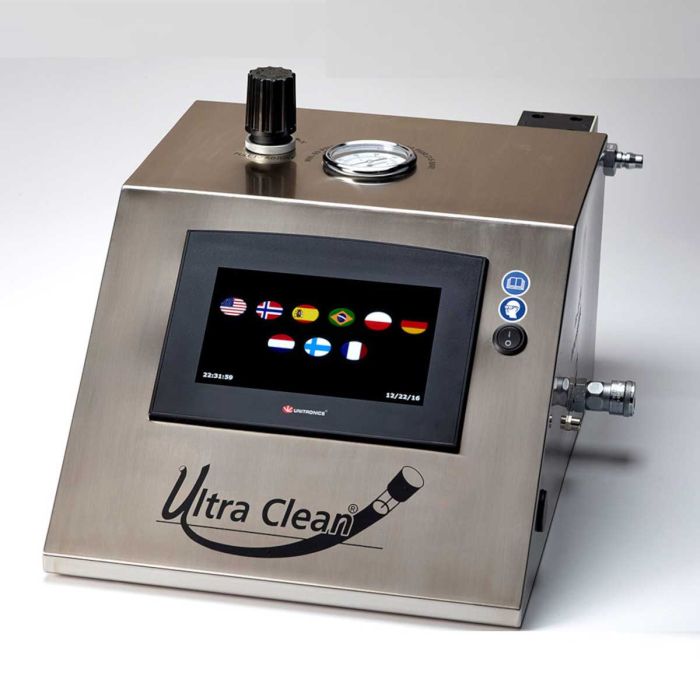

UC-PVS-G4
Projectile Verification System includes both the Control Station and Containment Barrell for verifying that your hose, tube or pipe is cleaned.
- 80psi (5.5 Bar) minimum to 110psi (7.5 Bar) maximum.
- ½” ID air supply hose to ensure 55 SCFM (1.6m3/min) air flow.
- UC-D1 Super-Dry Compressed Air Dryer is strongly recommended.
- Projectile Counting
- Fault Counting
- 5-micron (μ) Filter
- Regulator & Gauge
- 24-volt DC Power Supply
- Bench Mount Connection
- HL-PVS Connection
- Color Touchscreen
- Flexible Sequence Options
- Data Logging
- Optional SCADA integration
- Operator ID Logging
- Onscreen Indicator Lights
- Optional Ethernet Cable Connection
- 7” Human-Machine Interface (HMI) Screen
- 7-year battery back-up for HMI Touchscreen
- 4 cleaning modes: Normal Clean, Air Purge + 1 Projectile, Air Purge + 2 Projectiles, and Timed Air Blow
