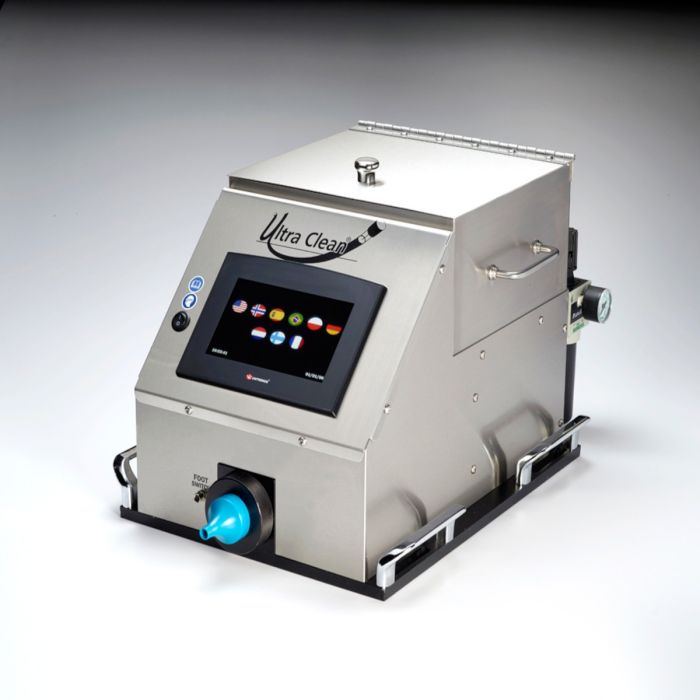

UC-CAL-MS
Carousel Automatic projectile launcher & projectile verification system with programmable logic controller
The UC-CAL-MS Carousel AutoLoader comes complete with a wireless containment barrel for projectile verification. There are nine hopper boxes available, one each for your choice of any projectile sized 7mm-33mm.
May be equipped with the Marking System (UC-CAL-MARK) to allow the ability to apply indication marks on hoses during cleaning. These marks act as a reference point during stem insertion to assure the fitting is properly installed before the crimp.
Additional add-on options may include bar-code scanning capabilities to ensure that operators use compatible components, and a solvent-injection unit for cutting down tough mandrel or grease residue. These optional add-ons are subject to availability.
- Automatic projectile loading, firing, and verification.
- Removes internal contamination from hoses, tubes or pipes quickly and efficiently in a production environment.
- Ideal for high volume production cells making hose or tube assemblies.
- Fully integratable in automated tube manufacturing processes.
- Verifies projectile has exited hose, tube or pipe and entered the Containment Barrel along with expelled contamination.
- Cleans hoses, tubes and pipes with an internal diameter of 1/4” inch (6mm) through 1” inch (25mm).
- Easy change-out between15 Hopper Box options, each handling one projectile size from 6mm to 33mm in diameter.
- Foot pedal firing device and/or hand held firing device options.
- Converts unit’s electrical requirement of110V AC-60Hz or 240V AC-50Hz to 24V DC and comes with appropriate electrical cord for easy installation.
- Built in pre-programmed Programmable Logic Controller (PLC) guides operator through set-up and cleaning process.
- Built-in Projectile Counter for counting fired and verified projectiles.
- Built-in air ionizer for removing static electricity for better orientation, loading, and firing of projectiles.
- Containment Barrel made of plastic and has a stainless steel chute assembly with green, yellow and red lights to indicate system and projectile mode (ready, firing, verified).
- The Pressure Regulator sets operating pressure at between 80 PSI (5.5 bar) and 110 PSI (7.5 bar).
- Requires clean, dry air for which the UC-D1 Super-Dry Compressed Air Dryer is strongly recommended.
