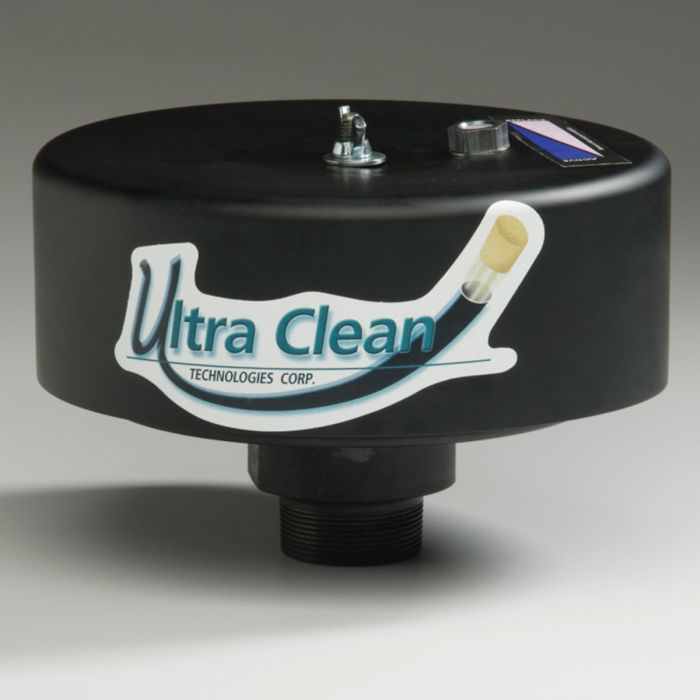

M-Series Steel Desiccant

M-Series breather is designed from heavy duty materials and is capable of handling the requirements of the most severe environments.

Grouped product items
Model	Height in. (cm)	Diameter in. (cm)	Mounting Connection	Weight lbs. (kg)	Water Capacity fl.oz (mL)	Maximum Airflow cfm	Maximum Reservoir Fluid Flow gpm	Type of Medium	Description	Min Qty
UC-M103	6.6 (16.8)	10 (25.4)	1” male NPT	8.4 (3.8)	12 (355)	35	262	100% Silica Gel	10" DIA x 4" TALL 1" MNPT	1
UC-M104	6.6 (16.8)	10 (25.4)	2” male NPT	9 (4.1)	12 (355)	120	900	100% Silica Gel	10" DIA x 4" TALL 2" MNPT	1
UC-M105	12 (30.5)	10 (25.4)	1” male NPT	14 (6.4)	26 (770)	35	262	100% Silica Gel	10" DIA x 10" TALL 1" MNPT	1
UC-M106	12 (30.5)	10 (25.4)	2” male NPT	16 (7.3)	26 (770)	120	900	100% Silica Gel	10" DIA x 10" TALL 2" MNPT	1
UC-M107	13.5 (34.3)	16 (40.6)	3” male NPT	41.5 (18.9)	128 (3785)	300	2250	100% Silica Gel	16" DIA x 11" TALL 3" MNPT	1

M-Series breathers are designed from heavy duty materials capable of handling the requirements of the most severe environments.
Replaces the standard breather cap or vent tube on tanks and reservoirs. Pipe threads on the bottom standpipe make this unit easy to install.
All M-Series designs have 2 micron pleated filters and silica gel bags that are easily replaced.
The M-Series design features our proprietary Splash Guard. This device is included in all M-Series models and prevents foaming or splashing fluids from entering the breather during normal operating conditions.
